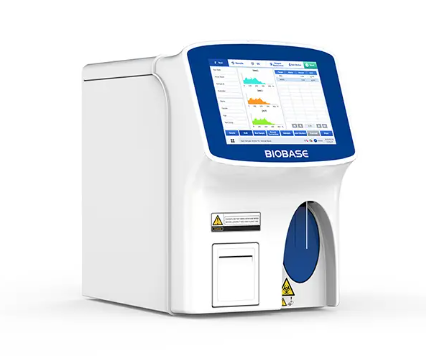

BIOBASE 3-Part Hematology Analyzer BH-HA310

Brand: BIOBASE
Product: 3-Part Hematology Analyzer
Model: BH-HA310

The BIOBASE BH-HA310 3-Part Hematology Analyzer is an automated laboratory system designed for routine analysis of the cellular components of blood, including white blood cells, red blood cells, haemoglobin and platelets. It provides automated counting and differentiation of blood cells to support routine clinical haematology testing and laboratory diagnostics.

The BH-HA310 combines electrical impedance technology for WBC differentiation and WBC/RBC/PLT counting with a colorimetric method for haemoglobin detection. It delivers 21 haematological parameters and 3 histograms at a throughput of up to 60 samples per hour, helping laboratories process routine blood samples efficiently.

With support for venous, capillary and prediluted samples, a low sample requirement, automated cleaning and blockage removal, large result storage capacity, built-in printing and bi-directional LIS connectivity, the BH-HA310 is designed to support efficient and streamlined laboratory workflows.

KEY FEATURES

• 3-PART HEMATOLOGY ANALYSIS: Provides 21 haematological parameters and 3 histograms, including WBC, RBC and PLT histograms.

• HIGH THROUGHPUT: Processes up to 60 samples per hour, supporting efficient routine blood testing.

• LOW SAMPLE REQUIREMENT: Requires only 10 μL of venous blood, 10 μL of capillary blood or 20 μL of prediluted sample.

• RELIABLE COUNTING TECHNOLOGY: Uses the electrical impedance method for WBC differentiation and WBC/RBC/PLT counting, with a colorimetric method for HGB detection.

• 9.7-INCH COLOUR TOUCHSCREEN: Provides an easy-to-operate interface and displays parameters and histograms on the same screen.

• MULTIPLE COUNTING MODES: Supports venous, capillary and prediluted sample modes.

• 24-HOUR CONTINUOUS OPERATION: The analyzer can operate continuously for up to 24 hours.

• AUTOMATIC CLEANING: Automatically cleans the sampler, counting pool and pipeline after startup.

• INTELLIGENT BLOCKAGE REMOVAL: Includes blockage detection and alarm functions, with high-voltage burn and reverse high-pressure flushing for unclogging.

• AUTOMATIC AND MANUAL CALIBRATION: Supports both automatic and manual calibration procedures.

• LARGE RESULT STORAGE: Stores up to 100,000 results with histograms for convenient result retrieval and review.

• BUILT-IN THERMAL PRINTER: Supports automatic and manual result printing, with the option to connect an external printer.

• BI-DIRECTIONAL LIS SUPPORT: Supports integration with a Laboratory Information System for laboratory data management and communication.

• MULTIPLE CONNECTIVITY OPTIONS: Provides 4 USB ports, a network port and an RS232 serial port.

• MULTIPLE LANGUAGE SUPPORT: Supports Chinese, English, Spanish, French, Russian and Ukrainian.

PROFESSIONAL HEMATOLOGY TESTING APPLICATIONS

The BIOBASE BH-HA310 is suitable for routine haematology testing in:

• Hospital laboratories

• Clinical laboratories

• Diagnostic laboratories

• Medical testing centres

• Haematology laboratories

• Private diagnostic facilities

• Primary and secondary healthcare laboratories

• Research and laboratory institutions

• Routine complete blood count (CBC) testing environments

Its combination of low sample volume, automated analysis, 60-sample-per-hour throughput, multi-mode sampling, result storage and LIS connectivity makes the BH-HA310 suitable for laboratories requiring efficient routine blood cell analysis.
